| More information on the 4000
model |
  |
View port |
| A viewing
port is employed so that rotation of the rotor can be
observed. This can also be used during GMP inspection. |
 |
|
Compact designt |
|
|
Since the centrifuge
cabinet has a shorter depth, there are more options
for device location.
|
 |
|
An automatic interlock lid is employed |
|
|
The lid automatically
opens when rotation stops and the lid automatically
locks when closed.
The lid can also be set to be opened by pressing the
lid open key after rotation stops.
|
 |
|
Operating status lamp, 7 color monitoring |
|
The operating status
lamp on top of the lid can be seen at a distance.
Seven lamp colors are user-selectable.
|
|
Centrifuging is possible with the samples just
balanced by eye |
|
(Not applicable when
using swinging bucket or fixed-angle rotors at 5,000
rpm or higher.)
|
|
Conditions for centrifuging can be set and
displayed in two ways, i.e. g's (RCF) and rpm (speed). |
| Setting for the rotation
radius can also be changed, which helps obtain a precise
RCF display. |
|

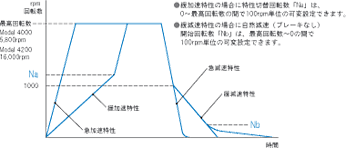

Free run can be used for the deceleration curve
accordeing to the sample and objective. |
|
|
Due to the direct drive
and a brushless motor, free run (natural deceleration)
applies smooth deceleration, providing a clear separation
plane.
|
 |
|
Memory flashing function (Patent pending) |
| The memory flashing function
makes the spin-down easy and simple by storing previous
spinning time automatically, then recalling repeatedly.
Pressing the flashing key, same operation whose spinning
time is from 1 second to 90 seconds can be repeated. |
|
Delayed start function (Patenet pending) |
| The operation automatically
starts after the preset duration from pressing the START
key. This function enables centrifuging of the fresh blood
that is taken out at the time just when the erythrocytes
coagulate. |
|
A tool-less rotor is employed, for easy rotor
changing. |
| No tools are required
when setting or changing applicable rotors. |
|
The tube rack (code no. 055-0880) has been
developed to accommodate blood collecting tubes |
| Blood collecting tubes
can be centrifuged using this tube rack (code no. 055-0880)
for various sizes (such as 5 mL, 7 mL, 10 mL) and 15 mL
glass tubes simultaneously with ST-720M swinging bucket
rotor. |
|
A lightweight fixed-angle rotor AT-508C accommodating
8 x 50 mL Conical tubes has been developed. |
| The RCF, which is important
for sepration, is as much as 5000 xg. |
|
